The Single Row VV Nano Strip connectors have contacts arranged on .025 (.64 mm) centerlines.

Resources

Title Type File
Single Row Vertical SMT (VV) Contact PDF Download
Single Row Vertical SMT (VV) Ordering Guide PDF Download
Compare
Categories: , , , Tags: ,

Description

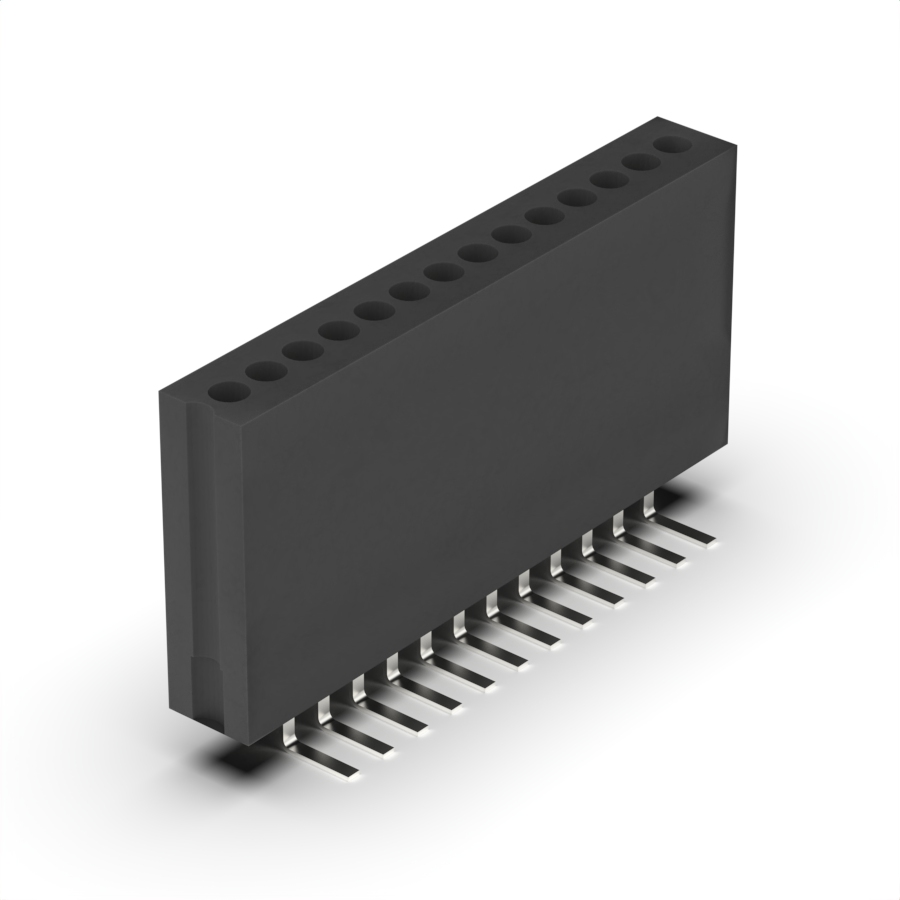

The Single Row VV Nano Strip connectors have contacts arranged on .025 (.64 mm) centerlines. The thru-hole tails are spread out into a mounting pattern on .050” (1.27 mm) centers, allowing space for traces and annular rings. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These durable lightweight connectors are perfect for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 60 positions, as well as custom configurations.

Additional information

Omnetics Series

NPS

,

NSS
Rows

1 Row
Termination Type

VV – Vertical Surface Mount
Electrical Mechanical Specifications

–
Temperature

-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage

250 VAC RMS Sea Level
Contact Resistance

71 milliohms max (71 mV max @ 1 AMP)
Current Rating

1 AMP per contact
Durability

200 Cycles
Insulation Resistance

5, 000 Megohms min @ 100 VDC
Shock

100 g's with no discontinuities > 10 nanoseconds
Vibration

20 g's with no discontinuities > 10 nanoseconds
Thermal Vacuum Outgassing

NASA SP-R-0022
Mating/Unmating Force

Forces not to exceed 7 oz/contact
Material Specifications

–
Insulator

LCP per MIL-M-24519
Socket

Gold Plated Copper Alloy
Pin

Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488
Encapsulant

Epoxy
Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS)
RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488
RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488

Features

The Single Row VV Nano Strip connectors have contacts arranged on .025 (.64 mm) centerlines. The thru-hole tails are spread out into a mounting pattern on .050” (1.27 mm) centers, allowing space for traces and annular rings. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These durable lightweight connectors are perfect for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 60 positions, as well as custom configurations.

Specifications

Omnetics Series

NPS

,

NSS
Rows

1 Row
Termination Type

VV – Vertical Surface Mount
Electrical Mechanical Specifications

–
Temperature

-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage

250 VAC RMS Sea Level
Contact Resistance

71 milliohms max (71 mV max @ 1 AMP)
Current Rating

1 AMP per contact
Durability

200 Cycles
Insulation Resistance

5, 000 Megohms min @ 100 VDC
Shock

100 g's with no discontinuities > 10 nanoseconds
Vibration

20 g's with no discontinuities > 10 nanoseconds
Thermal Vacuum Outgassing

NASA SP-R-0022
Mating/Unmating Force

Forces not to exceed 7 oz/contact
Material Specifications

–
Insulator

LCP per MIL-M-24519
Socket

Gold Plated Copper Alloy
Pin

Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488
Encapsulant

Epoxy
Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS)
RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488
RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488
