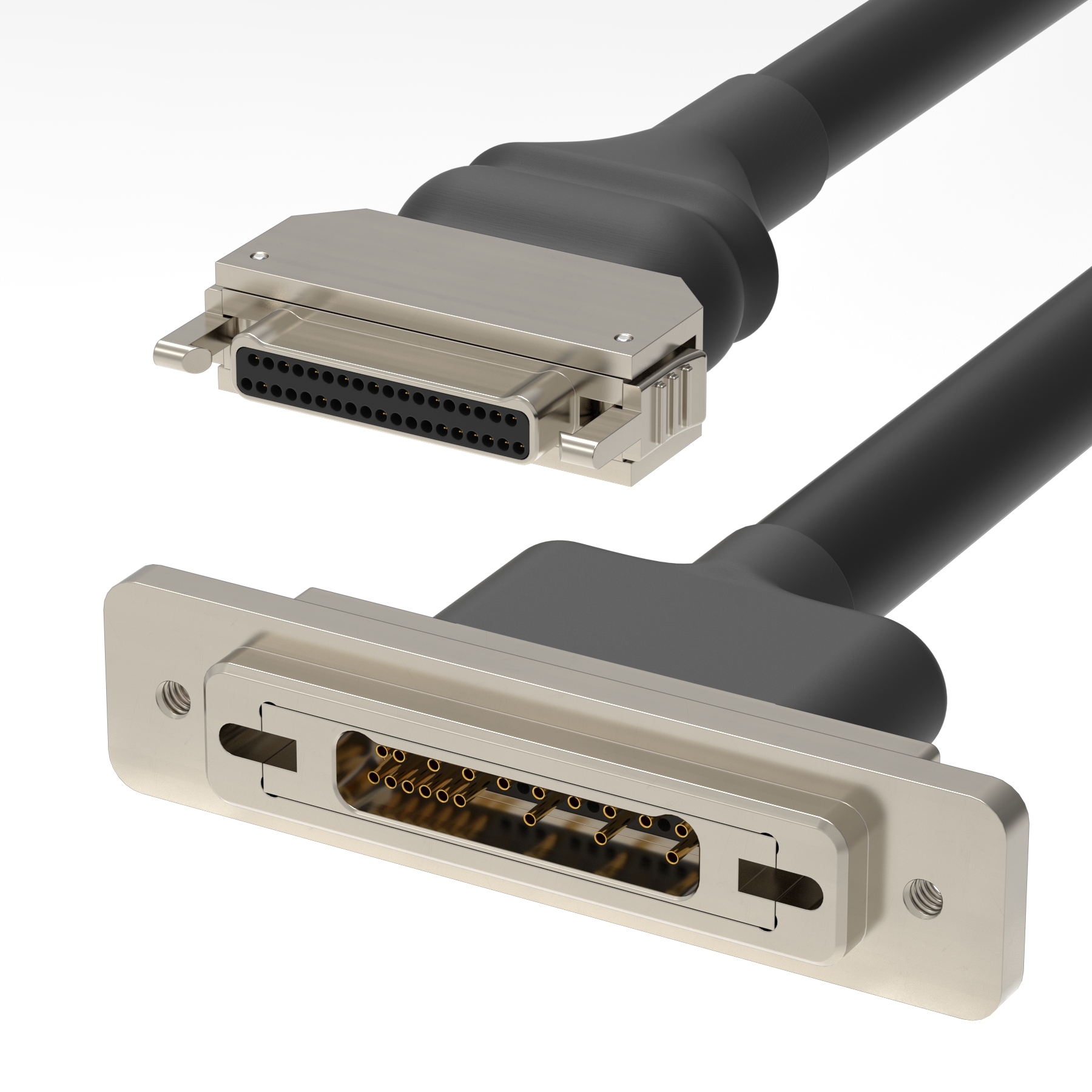

Omnetics Nano 360® HDMI connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of HDMI.
| Title | Type | File |
| Nano HDMI Connector Specifications | Download | |
| Nano HDMI Connector Dimensions | Download | |
| Nano HDMI Connector Characterization Report | Download |
Omnetics Nano 360® HDMI connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of HDMI. Using both simulation and measurement, Omnetics maximized the performance for HDMI by optimizing the pin locations of the critical signals. This yields maximum data transmission and provides excellent crosstalk that meets the requirements of HDMI, per HDMI.
| Electrical Mechanical Specifications |
– |
|---|---|
| Performance |
Product family tested to and passed or exceeded the performance specifications of Table VIII of MIL-DTL-32139 |
| Contact Resistance |
71 Milliohm Max (71mV Drop Max) @ 1.0 Amps per MIL-DTL-32139 |
| Current Rating |
1 Amp per MIL-DTL-32139 |
| Operating Temperature |
-55ºC to 85ºC |
| Durability |
>2000 mating cycles min |
| Insulation Resistance |
5000 megohms @ 500 VDC |
| Shock |
100 gs with no discontinuties > 10 nanosecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing (Space Class) |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy Per MIL-DTL-32139 |
| Contact Finish |
Gold per ASTM B488,Type II, Class 1.27, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Overmold |
Black Thermoplastic Polyurethane |
| O-Ring |
BUNA-N |
| Cable (Shielded) |
32 AWG (7-40) SPC, FEP color coded, Black Polyurethane Jacket |
| Shield |
Mylar foil wrap, 38 AWG tin plate copper braiding |
| Shell Options |
– |
| Brass Alloy 360 1/2 Hard |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 Black Oxide Finish per MIL-DTL-13924, Class 4*, Passivated per SAE-AMS-2700 |
