Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA)

$1.00

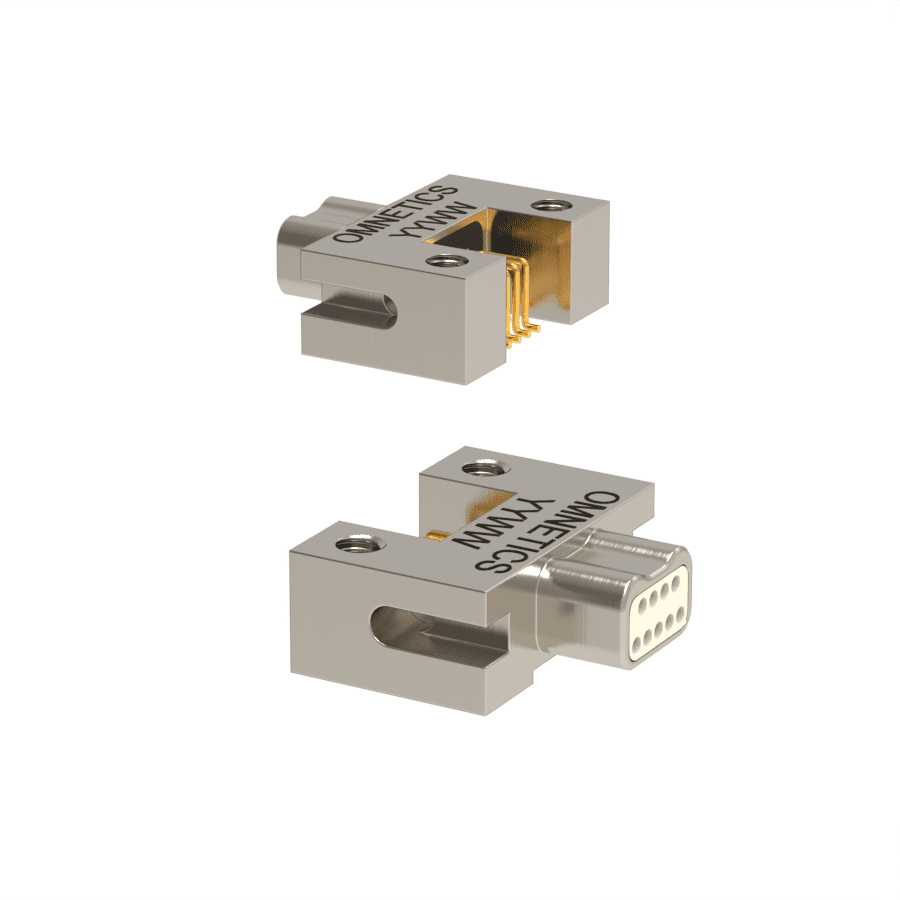

Omnetics Bi-Lobe® connectors are now available with a quick latch system. These latches require no tools and offer great ease in handling.

Resources

Title	Type	File
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Contact	PDF	Download
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Ordering Guide	PDF	Download
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Hardware & Misc.	PDF	Download

Compare

Description
Additional information
Features
Specifications
Resources
Accessories
Related

Description

Omnetics Bi-Lobe® connectors are now available with a quick latch system. These latches require no tools and offer great ease in handling.

Bi-Lobe® connectors utilize Omnetics rugged and reliable Flex Pin contact system. Spaced on 25 mil (.64mm) centerlines, they are capable of carrying 1 amp per contact. Extremely small and lightweight, they exceed the shock and vibration requirements of MIL-DTL- 32139.

Available in pin counts from 9-65, latching Bi-Lobe® can be configured with discrete wires, overmolded cable, panel mount housings, and PCB mounted versions.

Additional information

Omnetics Series	MNPL , MNSL , MNSLP
Rows	2 Rows
Termination Type	AA – Horizontal Surface Mount
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy

Features

Omnetics Bi-Lobe® connectors are now available with a quick latch system. These latches require no tools and offer great ease in handling.

Available in pin counts from 9-65, latching Bi-Lobe® can be configured with discrete wires, overmolded cable, panel mount housings, and PCB mounted versions.

Specifications

Omnetics Series	MNPL , MNSL , MNSLP
Rows	2 Rows
Termination Type	AA – Horizontal Surface Mount
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy

Resources

Title	Type	File
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Contact	PDF	Download
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Ordering Guide	PDF	Download
Nano-D / Bi-Lobe® Connectors – Latches – Surface Mount (AA) Hardware & Misc.	PDF	Download
